Proxy Logs - HTTP

1121087443.547 169 66.29.187.48 TCP_MISS/302 680 GET http://auto.search.msn.com/response.asp? DIRECT/205.161.4.166 text/html
1121087444.308 593 66.29.187.48 TCP_MISS/200 13787 GET http://search.msn.com/results.aspx? DIRECT/205.161.4.166 text/html
1121087444.422 13 66.29.187.48 TCP_MEM_HIT/200 38739 GET http://search.msn.com/sa/1_1_0000_26239/common.css NONE/- text/css
1121087444.472 9 66.29.187.48 TCP_MEM_HIT/200 28200 GET http://search.msn.com/sa/1_1_0000_26239/common.js NONE/- application/x-javascript
1121087444.663 8 66.29.187.48 TCP_MEM_HIT/200 1734 GET http://search.msn.com/s/hgrad.gif NONE/- image/gif
1121087444.669 1 66.29.187.48 TCP_MEM_HIT/200 2003 GET http://search.msn.com/s/logomsn.gif NONE/- image/gif
1121087444.774 12 66.29.187.48 TCP_MEM_HIT/200 423 GET http://search.msn.com/s/sbtnbk.gif NONE/- image/gif
1121087444.898 2 66.29.187.48 TCP_MEM_HIT/200 494 GET http://search.msn.com/s/more.gif NONE/- image/gif
1121087444.952 1 66.29.187.48 TCP_MEM_HIT/200 675 GET http://search.msn.com/s/mgou.gif NONE/- image/gif
1121087444.967 2 66.29.187.48 TCP_MEM_HIT/200 423 GET http://search.msn.com/s/snbtnbk.gif NONE/- image/gif
1121087445.232 4 66.29.187.48 TCP_MEM_HIT/200 319 GET http://search.msn.com/s/bullet.gif NONE/- image/gif
1121087469.903 124 66.29.187.48 TCP_MISS/200 3099 GET http://www.google.com/ DIRECT/64.233.161.104 text/html

Proxy Logs – HTTP - Download

1122923698.265 127692 66.29.187.48 TCP_MISS/200 369576 GET http://files.dvdr-digest.com/encode/dvdshrink23.zip DIRECT/67.15.68.51 application/zip

**************************************************************************

Example #1 – Downloading of Tools

By examining the Proxy Logs for HTTP, an investigator can determine what types of files are being downloaded and from where. This allows for a good picture of potential malware, and intrusion tools that the attacker may have utilized to commit his crime.

Proxy Logs – HTTP - Upload

1121191891.809 356 66.29.187.48 TCP_MISS/200 627 POST http://www.myhackersite.com/smfh/login.jsp DIRECT/12.10.217.31 text/html

1121191958.064 750 66.29.187.48 TCP_MISS/200 1160 POST http://www.myhackersite.com/smfh/passwordupload.aspx DIRECT/12.10.217.31 text/html

**************************************************************************

Example #2 – Uploading of Unauthorized Data

By examining the Proxy Logs for HTTP, an investigator can determine where stolen data could have been uploaded outside of the corporation. By examingint he above logs, you can see the user “” logged into site www.myhackersite.com and uploaded data to the script “passwordupload.aspx”.

Proxy Logs – HTTP – Malware Detection

1127162071.927 350 66.29.186.12 TCP_MISS/200 2360 CONNECT command.hacker.com:443 DIRECT/66.135.194.30 -

1127162099.925 386 66.29.151.9 TCP_MISS/200 5322 CONNECT command.hacker.com:443 DIRECT/66.135.213.40 -

1127162107.480 502 66.29.173.187 TCP_MISS/200 7343 CONNECT command.hacker.com:443 DIRECT/66.135.213.48 -

1127162579.189 2444 66.29.142.29 TCP_MISS/200 1999 CONNECT command.hacker.com:443 DIRECT/66.135.194.24 -

1127162579.194 1613 66.29.59.24 TCP_MISS/200 2012 CONNECT command.hacker.com:443 DIRECT/66.135.194.24 -

1127162579.197 2012 66.29.50.149 TCP_MISS/200 1997 CONNECT command.hacker.com:443 DIRECT/66.135.194.24 -

1127162579.199 1616 66.29.128.48 TCP_MISS/200 1998 CONNECT command.hacker.com:443 DIRECT/66.135.194.24 -

*************************************************************************************

Example #3 – Malware Detection

Most malware developed today are “smart”. They will contact a predetermined location for software updates, instructions, and to drop off compromised data. By examining the Proxy HTTP logs, an investigator can determine the spread of the infection. This method will work with Transparent proxies also.

Analysis Proxy Logs

Proxy Logs

HTTP Logs
HTTPS Logs
Telnet Logs
SSH Logs
FTP Logs
News Logs

Log Analysis – VPN & Radius Logs

VPN & Radius Logs
May 9 03:02:32 66.71.0.3 312 05/09/2005 03:34:52 tEvtLgMgr 0 : Security [12] Session: IPSEC[jhatefield]:19656 physical addresses: remote 212.72.147.6 local 100.100.100.2
May 9 03:02:32 66.71.0.3 312 05/09/2005 03:34:52 tEvtLgMgr 0 : Security [12] Session: IPSEC[jhatefield]:19656 assigned IP address 66.71.16.253, mask 255.255.0.0
********************************************************************************
May 15 22:41:23 test400-1 15639 05/15/2005 22:02:22 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176811 authentication failed using RADIUS
May 15 22:41:42 test400-1 15639 05/15/2005 22:02:49 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176815 authentication failed using RADIUS
May 15 22:42:35 test400-1 15639 05/15/2005 22:03:39 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176823 authentication failed using RADIUS
May 15 22:42:37 test400-1 15639 05/15/2005 22:03:47 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176829 authentication failed using RADIUS
May 15 22:43:12 test400-1 15639 05/15/2005 22:04:12 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176833 authentication failed using RADIUS
May 15 22:43:29 test400-1 15639 05/15/2005 22:04:28 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176836 authentication failed using RADIUS
May 15 22:43:47 test400-1 15639 05/15/2005 22:04:57 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176838 authentication failed using RADIUS

May 9 03:02:32 66.71.0.3 312 05/09/2005 03:34:52 tEvtLgMgr 0 : Security [12] Session: IPSEC[jhatefield]:19656 physical addresses: remote 212.72.147.6 local 100.100.100.2
May 9 03:02:32 66.71.0.3 312 05/09/2005 03:34:52 tEvtLgMgr 0 : Security [12] Session: IPSEC[jhatefield]:19656 assigned IP address 66.71.16.253, mask 255.255.0.0

***********************************
What does this tell you?
How can this be helpful to an investigation?

VPN & Radius Logs – Identification of External IP

May 9 03:02:32 66.71.0.3 312 05/09/2005 03:34:52 tEvtLgMgr 0 : Security [12] Session: IPSEC[jhatefield]:19656 physical addresses: remote 212.72.147.6 local 100.100.100.2

May 9 03:02:32 66.71.0.3 312 05/09/2005 03:34:52 tEvtLgMgr 0 : Security [12] Session: IPSEC[jhatefield]:19656 assigned IP address 66.71.16.253, mask 255.255.0.0

**************************************************************************

Example #1 – Identification of External IP

Now that you have determined what the internal IP address was used to compromise the server, how would you be able to determine where from the external internet this person was coming in from?

VPN & Radius Logs – Brute Force Attacks

May 15 22:41:23 test400-1 15639 05/15/2005 22:02:22 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176811 authentication failed using RADIUS

May 15 22:41:42 test400-1 15639 05/15/2005 22:02:49 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176815 authentication failed using RADIUS

May 15 22:42:35 test400-1 15639 05/15/2005 22:03:39 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176823 authentication failed using RADIUS

May 15 22:42:37 test400-1 15639 05/15/2005 22:03:47 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176829 authentication failed using RADIUS

May 15 22:43:12 test400-1 15639 05/15/2005 22:04:12 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176833 authentication failed using RADIUS

May 15 22:43:29 test400-1 15639 05/15/2005 22:04:28 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176836 authentication failed using RADIUS

May 15 22:43:47 test400-1 15639 05/15/2005 22:04:57 tEvtLgMgr 0 : Security [13] Session: IPSEC[mbushe]:1176838 authentication failed using RADIUS

**************************************************************************

Example #2 – Detection of Brute Force Attack

In the course of the investigation, you have determined that the VPN was the point of entry. How would the VPN Logs help you determine HOW the intruder was able to access the system?

VPN & Radius Logs – Patterns of Behavior

May 9 09:14:47 test400-1 15639 05/09/2005 08:35:36 tEvtLgMgr 0 : Security [12] Session: IPSEC[sbclark]:1160001 assigned IP address 66.51.1.60, mask 255.255.0.0

May 9 09:14:47 test400-1 15639 05/09/2005 08:35:36 tEvtLgMgr 0 : Security [12] Session: IPSEC[sbclark]:1160001 physical addresses: remote 12.65.67.244 local 66.196.147.3

**************************************************************************

Example #3 – Detection of abnormal patterns of behavior

How would you be able to utilize the VPN & Radius logs to determine abnormal patterns of behavior for a suspect employee?

For example, if the employee is at work, however his account is being utilized for VPN from outside the company during his normal work hours, it might be suspected that somebody had compromised his account and was utilizing it without authorization.

Router & Switch Logs

Log Analysis – Router & Switch Logs Combined

Scanning Office: "Birmingham, AL"
Router: 66.113.24.1 and Switch: 66.113.24.2
MAC Address: 0004dc804ac0 IP: 66.113.24.2 Port: 0 Manufacturer: Nortel Networks
MAC Address: 00065ba2d734 IP: 66.113.24.242 Port: 7 Manufacturer: Dell Computer Corp.
MAC Address: 080046da3913 IP: 66.113.24.175 Port: 8 Manufacturer: Sony Corporation LTD.
MAC Address: 00065bea6579 IP: 66.113.24.182 Port: 9 Manufacturer: Dell Computer Corp.
MAC Address: 000874a5b56c IP: 66.113.24.71 Port: 3 Manufacturer: Dell Computer Corp.
MAC Address: 00055d6f0638 IP: 66.113.24.245 Port: 5 Manufacturer: D-Link Systems, Inc.
MAC Address: 000874f96725 IP: 66.113.24.243 Port: 2 Manufacturer: Dell Computer Corp.
MAC Address: 000874f96736 IP: 66.113.24.244 Port: 6 Manufacturer: Dell Computer Corp.
MAC Address: 000bdb28aa0c IP: 66.113.24.232 Port: 12 Manufacturer: Dell ESG PCBA Test
MAC Address: 000d5618b326 IP: 66.113.24.219 Port: 7 Manufacturer: Dell PCBA Test
MAC Address: 000d564a33c2 IP: 66.113.24.178 Port: 11 Manufacturer: Dell PCBA Test
MAC Address: 000e7f3a1b3a IP: 66.113.24.10 Port: 4 Manufacturer: Hewlett Packard
MAC Address: 00123f18da3f IP: 66.113.24.176 Port: 15 Manufacturer: Dell Inc
MAC Address: 00b0d013b9a3 IP: 66.113.24.248 Port: 10 Manufacturer: Dell Computer Corp.
MAC Address: 00b0d0a6597a IP: 66.113.24.70 Port: 18 Manufacturer: Dell Computer Corp.

Scan Completed.

Log Analysis – Router & Switch Logs – Physical Location

Router: 66.113.24.1 and Switch: 66.113.24.2

…

MAC Address: 00055d6f0638 IP: 66.113.24.245 Port: 5 Manufacturer: D-Link Systems, Inc.

…

**************************************************************************

Example #1 – Identification of Physical Location

You have now identified via the DHCP server that the machine used to compromise the servers was utilized MAC address “00055d6f0638” with IP address of “66.113.24.245”, how do you track this physical machine down in a country wide network?

Log Analysis – Router & Switch Logs – Fixed IP

Router: 66.113.24.1 and Switch: 66.113.24.2

…

MAC Address: 000e7f3a1b3a IP: 66.113.24.10 Port: 4 Manufacturer: Hewlett Packard

…

**************************************************************************

Example #2 – Finding machines with FIXED IPs

After examining the DHCP logs in detail, it does not seem that the attacker utilized DHCP to obtain their IP address. They must have utilized a FIXED IP address. How would you be able to determine their MAC address and physical location from another subnet in the same WAN?

Log Analysis – Router & Switch Logs – Unauthorized Devices

Router: 66.113.24.1 and Switch: 66.113.24.2

…

MAC Address: 00055d6f0638 IP: 66.113.24.245 Port: 5 Manufacturer: D-Link Systems, Inc.

MAC Address: 080046da3913 IP: 66.113.24.175 Port: 8 Manufacturer: Sony Corporation LTD.

…

**************************************************************************

Example #3 – Determination of Unauthorized Devices with Fixed IPs

How would you be able to tell if a person attached an unauthorized piece of equipment to the target network? By examining the above lines of the router & switch logs, you can determine that there were two devices that are “non-compliant” on the network. For example, the D-Link device is a wireless router. This could be the compromise point of the network. Also, since the corporation only purchases Dell computers, the connection of a Sony device is also suspicious.

DHCP Logs Analysis : DNS Unauthorized Network Extensions

Example # – DNS “Unauthorized Network Extensions”
Trundle Motor company has reported that somebody has somehow compromised their systems. However, a detailed review of their Firewall logs show that there were no attempts from the outside world. Also, since they are a family company, they don’t believe that any of their employees would have commited this crime.

How can DHCP logs help this investigation?

IP Address:66.111.113.141 => 00:06:5b:17:88:c3-(UHC05R01)[Dell Computer Corp.]

IP Address:66.111.113.146 => 00:11:43:3f:1e:8b-(J0W8L61)[DELL INC.]

IP Address:66.111.113.147 => 00:06:5b:17:89:0e-(6B05R01)[Dell Computer Corp.]

IP Address:66.111.113.153 => 00:06:5b:17:8a:1a-(8C05R01)[Dell Computer Corp.]

IP Address:66.111.113.154 => 00:05:5d:6f:06:38-(wireless)[D-Link Systems, Inc.]

IP Address:66.111.113.155 => 00:06:5b:17:8a:a0-(4D15R01)[Dell Computer Corp.]

IP Address:66.111.113.156 => 00:06:5b:17:87:9e-(BF15R01)[Dell Computer Corp.]

IP Address:66.111.113.157 => 00:06:5b:17:89:19-(1D05R01)[Dell Computer Corp.]

IP Address:66.111.113.158 => 00:06:5b:17:87:b3-(75Z4R01)[Dell Computer Corp.]

IP Address:66.111.113.177 => 00:0c:29:d2:64:53-(d8e63e7d5)[VMware, Inc.]

***********************************

By examining the above logs, you can tell that IP 66.119.191.94 comes back to a D-Link router. This may be an unauthorized wireless extension of the network. The intruder could have entered the network utilizing this method. This method of entry would not leave any traces in the Firewall, VPN, or remote connection logs.

The first three octets of the MAC address can be looked up in the IEEE OUI and Company_id Assignment tables at

http://standards.ieee.org/regauth/oui/index.shtml

DHCP Logs Analysis : DNS Multiple IPs

Example – DNS “Multiple IPs”
Nisco Food and Beverage reported that four of their servers had been compromised by an internal individual. However each of the servers seems to be compromised by a different IP address. This company is running a DHCP server.

How would you be able to determine how many users initiated this attack?

Jun 20 07:05:15 dhcp1 dhcpd: DHCPACK on 66.121.9.155 to 00:0d:56:1a:6a:05 (GMMHF41) via xl1

Jun 20 08:14:12 dhcp1 dhcpd: DHCPACK on 66.122.2.103 to 00:0d:56:1a:6a:05 (GMMHF41) via xl1

Jun 20 09:12:16 dhcp1 dhcpd: DHCPACK on 66.101.3.104 to 00:0d:56:1a:6a:05 (GMMHF41) via xl1

***********************************

By searching through the logs for a specific MAC address, you can determine when individual IP addresses are being issued.

If this attacker in question was randomly walking around the company initiating attacks, this search would tell you that the same NIC card was utilized with all three target IP’s.

Analysis DHCP Logs

Jun 20 07:05:15 dhcp1 dhcpd: DHCPREQUEST for 66.121.9.155 from 00:0d:56:1a:6a:05 (GMMHF41) via xl1
Jun 20 07:05:15 dhcp1 dhcpd: DHCPACK on 66.121.9.155 to 00:0d:56:1a:6a:05 (GMMHF41) via xl1
Jun 20 07:05:15 dhcp1 dhcpd: DHCPDISCOVER from 00:14:22:bc:09:94 via 66.121.66.1
Jun 20 07:05:16 dhcp1 dhcpd: DHCPOFFER on 66.121.66.203 to 00:14:22:bc:09:94 (DFVDJP81) via 66.121.66.1
Jun 20 07:05:16 dhcp1 dhcpd: Added new forward map from DFVDJP81.dhcp.mycompany.com to 66.121.66.203
Jun 20 07:05:16 dhcp1 dhcpd: added reverse map from 203.66.121.66.in-addr.arpa. to DFVDJP81.dhcp.mycompany.com
Jun 20 07:05:16 dhcp1 dhcpd: DHCPREQUEST for 66.121.66.203 (66.130.0.56) from 00:14:22:bc:09:94 (DFVDJP81) via 66.121.66.1
Jun 20 07:05:16 dhcp1 dhcpd: DHCPACK on 66.121.66.203 to 00:14:22:bc:09:94 (DFVDJP81) via 66.121.66.1

Jun 20 07:05:15 dhcp1 dhcpd: DHCPACK on 66.121.9.155 to 00:0d:56:1a:6a:05 (GMMHF41) via xl1

***********************************

What does this tell you?

How can this be helpful to an investigation?

Example #1 – DNS “Malicious User”

ABC Lollipop Incorporated reported that one of their contractors turned bad. It seemed that the malicious user had hooked up his laptop to their network and compromised various servers, however when they examined the laptop, they couldn’t find any trace of his malicious activities. The company utilizes DHCP and they aren’t even sure that he used the laptop in question.

How would you be able to determine if the laptop was used to commit these crimes?

DHCP Logs - Intrusion

Jun 20 07:05:15 dhcp1 dhcpd: DHCPACK on 66.121.9.155 to 00:0d:56:1a:6a:05 (GMMHF41) via xl1
Jun 20 07:05:15 dhcp1 dhcpd: DHCPDISCOVER from 00:14:22:bc:09:94 via 66.121.66.1

***********************************

During the first DHCP request, the packet includes the MAC address of the machine requesting the IP address. This request will traverse all routers and gateways intact. This is seen under the DHCPDISCOVER line which designates the gateway of request.

From the above request, the IP of 66.121.9.155 was assigned to the physical NIC with MAC 00:0d:56:1a:6a:05 with machine name GMMHF41.

Even if the user decides to wipe his hard drive, the IP address is tied to his physical device. The device can be seen as the “weapon” utilized to commit the crime.

Analysis – DNS Logs: Hi-Jacking

ADD Employment Agency states that somebody seems to be stealing usernames and passwords, but they can’t determine if what’s happening exactly. The only thing strange that they can see is that the volume on their web server seems to be very slow.

How would you be able to determine where the intruder was obtaining their intrusion tools from?
How would you be able to determine where the intruder may have off loaded the stolen information to?

Sample A –

10:54:12.423228 66.121.2.33748 > 171.159.193.173: 21345 [1au] A? www.bankofamerica.com. (42) (DF)
10:54:21.313293 66.121.2.33748 > 216.239.38.66.53: 53735 [1au] A? www.google.com. (43) (DF)
10:54:27.182852 66.121.2.33748 > 149.174.213.7.53: 19315 [1au] A? www.netscape.com. (45) (DF)
10:54:43.252461 66.121.2.33748 > 66.35.250.11.53: 43129 [1au] A? www.linux.com. (42) (DF)

Sample B –

10:55:01.193847 66.121.2.33748 > 12.115.29.29: 21345 [1au] A? www.bankofamerica.com. (42) (DF)

10:55:03.834839 66.121.2.33748 > 216.239.38.66.53: 53735 [1au] A? www.google.com. (43) (DF)

10:55:18.382739 66.121.2.33748 > 149.174.213.7.53: 19315 [1au] A? www.netscape.com. (45) (DF)

10:55:21.726354 66.121.2.33748 > 66.35.250.11.53: 43129 [1au] A? www.linux.com. (42) (DF)

DNS Logs (Malware) Example #2- Intrusion

Ding-Bat Incorporated states that they have had one of their servers compromised. However it seemed that the intruder had “cleaned” up after themselves by wiping the computer’s hard drive when they were done. They are pretty sure that the intruder had sent a copy of the employee database to an external location.

How would you be able to determine where the intruder was obtaining their intrusion tools from?
How would you be able to determine where the intruder may have off loaded the stolen information to?

08-May-2006 14:07:43.845 client 66.111.51.102#51402: query (cache) ‘www.insecure.org/A/IN' approved
08-May-2006 14:09:43.847 client 66.111.51.102#51403: query (cache) ‘www.2600.org/A/IN' approved
08-May-2006 14:11:43.864 client 66.111.51.102#51410: query (cache) ‘ftp.attrition.org/A/IN' approved
08-May-2006 14:13:43.854 client 66.111.51.102#51415: query (cache) ‘telnet.cultdeadcow.com/A/IN' approved
08-May-2006 14:15:43.863 client 66.111.51.102#51416: query (cache) ‘www.hackinthebox.org/A/IN' approved
08-May-2006 14:17:43.865 client 66.111.51.102#51427: query (cache) ‘home.cyberarmy.com/A/IN' approved
08-May-2006 14:19:43.873 client 66.111.51.102#51428: query (cache) ‘mixter.void.ru/A/IN' approved

DNS Log Analysis

DNS Logs

08-May-2006 13:48:07.957 client @0x8b69800: udprecv
08-May-2006 13:48:07.958 client 66.66.0.63#62048: UDP request
08-May-2006 13:48:07.958 client 66.66.0.63#62048: using view '_default'
08-May-2006 13:48:07.958 client 66.66.0.63#62048: request is not signed
08-May-2006 13:48:07.958 client 66.66.0.63#62048: recursion available
08-May-2006 13:48:07.958 client 66.66.0.63#62048: query
08-May-2006 13:48:07.961 client 66.66.0.63#62048: query '70.0.130.66.in-addr.arpa/PTR/IN' approved
08-May-2006 13:48:07.961 client 66.66.0.63#62048: send
08-May-2006 13:48:07.961 client 66.66.0.63#62048: sendto
08-May-2006 13:48:07.961 client 66.66.0.63#62048: senddone
08-May-2006 13:48:07.962 client 66.66.0.63#62048: next
08-May-2006 13:48:07.962 client 66.66.0.63#62048: endrequest
08-May-2006 13:48:07.962 client @0x8b69800: udprecv
08-May-2006 13:48:07.748 client 66.66.24.169#1025: query (cache) 'instructions.hacker.net/A/IN' approved
08-May-2006 13:48:07.748 createfetch: instructions.hacker.net A
08-May-2006 13:48:07.748 fctx 0x8251c00(instructions.hacker.net/A'): create
08-May-2006 13:48:07.749 fctx 0x8251c00(instructions.hacker.net/A'): join
08-May-2006 13:48:07.749 fetch 0x81ef040 (fctx 0x8251c00(instructions.hacker.net/A)): created
08-May-2006 13:48:07.749 fctx 0x8251c00(instructions.hacker.net/A'): start
08-May-2006 13:48:07.749 fctx 0x8251c00(instructions.hacker.net/A'): try
08-May-2006 13:48:07.749 fctx 0x8251c00(instructions.hacker.net/A'): cancelqueries
08-May-2006 13:48:07.749 fctx 0x8251c00(instructions.hacker.net/A'): getaddresses
08-May-2006 13:48:07.749 fctx 0x8251c00(instructions.hacker.net/A'): query

08-May-2006 13:48:07.748 client 66.66.24.169#1025: query (cache) 'instructions.hacker.net/A/IN' approved

*************************************

What does this tell you?

How can this be helpful to an investigation?

Example #1 – Malware

The “Fuzzy Widget” company states that they have been compromised by a network Worm. This worm was custom written by a disgruntled employee. Since this worm is not a world wide distribution, there are no Anti-Virus Products that can detect this program. They think that the worm is capturing keystrokes and sending them off-site.

How would you be able to determine the extent of their infection?
How would you be able to determine which machines had been compromised?

DNS Logs (Malware)

08-May-2006 14:59:43.936 client 66.11.51.102#51563: query (cache) 'mail.hackedbox.com/A/IN' approved
08-May-2006 15:00:28.014 client 66.30.0.70#18380: query (cache) 'ns4.hackedbox.com/AAAA/IN' approved
08-May-2006 15:00:28.016 client 66.30.0.70#18380: query (cache) 'ns3.hackedbox.com/AAAA/IN' approved
08-May-2006 15:00:28.019 client 66.30.0.70#18380: query (cache) 'ns2.hackedbox.com/AAAA/IN' approved
08-May-2006 15:01:18.113 client 66.19.187.65#1607: query (cache) 'toolbarqueries.hackedbox.com/A/IN' approved
08-May-2006 15:01:38.227 client 66.13.24.169#1025: query (cache) 'www.hackedbox.com/A/IN' approved
08-May-2006 15:01:43.953 client 66.11.51.102#51572: query (cache) 'mail.hackedbox.com/A/IN' approved
08-May-2006 15:02:05.022 client 66.30.0.70#18380: query (cache) 'ns4.hackedbox.com/AAAA/IN' approved
08-May-2006 15:02:05.025 client 66.30.0.70#18380: query (cache) 'ns2.hackedbox.com/AAAA/IN' approved
08-May-2006 15:02:05.921 client 66.12.9.100#1026: query (cache) 'toolbarqueries.hackedbox.com/A/IN' approved
08-May-2006 15:03:43.942 client 66.11.51.102#51575: query (cache) 'mail.hackedbox.com/A/IN' approved
08-May-2006 15:03:55.610 client 66.12.9.100#1026: query (cache) 'toolbarqueries.hackedbox.com/A/IN' approved
08-May-2006 15:04:05.962 client 66.17.6.115#1604: query (cache) 'toolbarqueries.hackedbox.com/A/IN' approved
08-May-2006 15:05:43.946 client 66.11.51.102#51576: query (cache) 'mail.hackedbox.com/A/IN' approved

08-May-2006 15:07:03.262 client 66.13.123.203#3893: query 'hackedbox.mycompany.com/A/IN' approved

Infrastructure Logs and Overview

DNS Logs
DHCP Logs
Router & Switch Logs
VPN & Radius Logs
Web Proxy Logs
Syslog Logs

Windows Firewall Logs: Analysis Suspected logs

In this instance, the suspect had been visiting very specific web sites, however he wiped his Internet History and “scrubbed” his hard drive after every attempt. The Internet Firewall Logs could provide you with data of where he was visiting.

2014-06-11 13:42:46 CLOSE TCP 5.1.2.140 171.161.161.173 3054 80 - - - - - - - - -

2014-06-11 13:42:46 OPEN TCP 5.1.2.140 171.161.161.173 3056 443 - - - - - - -

Detection of Port Scanning

2014-06-13 10:08:59 DROP TCP 29.39.187.22 29.39.187.182 4884 83 48 S 1714153331 0 65535 - - - RECEIVE

2014-06-13 10:08:59 DROP TCP 29.39.187.22 29.39.187.182 4885 941 48 S 1344758057 0 65535 - - - RECEIVE

2014-06-13 10:08:59 DROP TCP 29.39.187.22 29.39.187.182 4886 2433 48 S 2885764181 0 65535 - - - RECEIVE

2014-06-13 10:08:59 DROP TCP 29.39.187.22 29.39.187.182 4887 2433 48 S 162617412 0 65535 - - - RECEIVE

2014-06-13 10:08:59 DROP TCP 29.39.187.22 29.39.187.182 4888 941 48 S 1655770406 0 65535 - - - RECEIVE

2014-06-13 10:08:59 DROP TCP 29.39.187.22 29.39.187.182 4889 83 48 S 4255030500 0 65535 - - - RECEIVE

2014-06-13 10:08:59 DROP TCP 29.39.187.22 29.39.187.182 4890 714 48 S 4125832776 0 65535 - - - RECEIVE

Finding Port Scanning

We can look for two types of scans:

Horizontal (Same port, many different machines)
Vertical (Same machine, many different ports)

Each type leaves a different signature in the logs
Import logs into Excel

Examining Scans Data

Import firewall logs into Excel
This makes scans easy to spot manually

Horizontal Scans

Vertical Scans

Analysis Windows Firewall Logs

#Version: 1.5
#Software: Microsoft Windows Firewall
#Time Format: Local
#Fields: date time action protocol src-ip dst-ip src-port dst-port size tcpflags tcpsyn tcpack tcpwin icmptype icmpcode info path
2014-06-06 11:34:01 DROP UDP 75.34.59.126 75.34.59.255 3210 3328 708 - - - - - - - RECEIVE
2014-06-06 11:34:01 DROP UDP 75.34.59.139 75.34.59.255 1040 3328 708 - - - - - - - RECEIVE
2014-06-06 11:34:03 OPEN TCP 75.34.59.183 75.34.101.20 1982 80 - - - - - - - - -
2014-06-06 11:34:03 OPEN TCP 75.34.59.183 75.34.101.20 1983 80 - - - - - - - - -
2014-06-06 11:34:04 CLOSE TCP 75.34.59.183 75.34.101.20 1978 80 - - - - - - - - -
2014-06-06 11:34:04 OPEN TCP 75.34.59.183 75.34.101.20 1984 80 - - - - - - - - -
2014-06-06 11:34:04 CLOSE TCP 75.34.59.183 75.34.101.20 1984 80 - - - - - - - - -
2014-06-06 11:34:05 CLOSE TCP 75.34.59.183 10.130.40.11 1925 389 - - - - - - - - -
2014-06-06 11:34:06 DROP UDP 75.34.59.126 75.34.59.255 3210 3328 708 - - - - - - - RECEIVE
2014-06-06 11:34:06 CLOSE TCP 75.34.59.183 75.34.101.20 1982 80 - - - - - - - - -
2014-06-06 11:34:06 DROP UDP 75.34.59.139 75.34.59.255 1040 3328 708 - - - - - - - RECEIVE
2014-06-06 11:34:07 DROP UDP 75.34.59.224 255.255.255.255 68 67 328 - - - - - - - RECEIVE
2014-06-06 11:34:07 CLOSE TCP 75.34.59.183 75.34.101.20 1983 80 - - - - - - - - -

2014-06-06 11:34:03 OPEN TCP 75.34.59.183 75.34.101.20 1982 80 - - - - - - - - -

*************************************

What does this tell you?

How can this be helpful to an investigation?

2014-06-06 11:34:03 OPEN TCP 75.34.59.183 75.34.101.20 1982 80 - - - - - - - - -

date - 2014-06-06
time - 11:34:03
action - OPEN
protocol - TCP
src-ip - 75.34.59.183
dst-ip - 75.34.101.20
src-port - 1982
dst-port - 80
size - -
tcpflags tcpsyn tcpack tcpwin icmptype icmpcode info path

2014-06-08 07:34:29 OPEN TCP 48.28.28.182 48.28.28.195 1057 139 - - - - - - - - -

2014-06-08 07:34:29 OPEN TCP 48.28.28.182 48.28.28.195 1058 445 - - - - - - -

From the logs, it can be determined that the intruder IP “48.28.28.182” opened and established a TPC session with “48.28.28.195” over ports 139 and 445. This is commonly known as a “mapped network drive”

2014-06-08 08:01:43 CLOSE TCP 5.1.2.139 216.239.51.104 1476 80 - - - - - - - - -
2014-06-08 08:01:43 OPEN TCP 5.1.2.139 216.239.51.104 1478 80 - - - - - - - - -
2014-06-08 08:01:44 OPEN TCP 5.1.2.139 10.130.70.61 1479 443 - - - - - - - - -
2014-06-08 08:02:02 OPEN TCP 5.1.2.139 72.14.209.176 1480 80 - - - - - - - - -
2014-06-08 08:02:02 OPEN TCP 5.1.2.139 72.14.209.176 1481 80 - - - - - - - - -
2014-06-08 08:02:04 CLOSE TCP 5.1.2.139 64.233.169.103 1466 80 - - - - - - - - -
2014-06-08 08:02:05 CLOSE TCP 5.1.2.139 10.130.70.61 1479 443 - - - - - - - - -
2014-06-08 08:02:10 CLOSE UDP 5.1.2.139 12.127.16.68 1025 53 - - - - - - - - -
2014-06-08 08:02:15 CLOSE TCP 5.1.2.139 72.14.209.176 1480 80 - - - - - - - - -
2014-06-08 08:02:15 CLOSE TCP 5.1.2.139 72.14.209.176 1481 80 - - - - - - - - -
2014-06-08 08:02:24 OPEN TCP 5.1.2.139 64.233.169.103 1482 80 - - - - - - - - -
2014-06-08 08:02:24 OPEN TCP 5.1.2.139 72.14.209.176 1483 80 - - - - - - - - -
2014-06-08 08:02:35 CLOSE TCP 5.1.2.139 72.14.209.176 1483 80 - - - - - - - - -
2014-06-08 08:02:37 OPEN TCP 5.1.2.139 72.14.209.176 1484 80 - - - - - - - - -
2014-06-08 08:02:37 OPEN TCP 5.1.2.139 72.14.209.176 1485 80 - - - - - - - - -
2014-06-08 08:02:42 OPEN UDP 5.1.2.139 12.127.16.68 1025 53 - - - - - - - - -
2014-06-08 08:02:42 OPEN TCP 5.1.2.139 208.65.153.253 1486 80 - - - - - - - - -

Windows Firewall Logs

Kinds Of Connections

The most common types of firewall traffic:

Mostly we have Incoming TCP, ICMP, UDP (DNS separate), and some Outgoing connections

Windows Event Logs

Broad Categories of Windows Logs

Error: significant problem like data loss
Warning: Potentially serious problem, but not necessarily. Something requiring further investigation.
Information: More for debugging purposes.
Success Audit: Successful security event. Could be malicious.
Failure Audit: Opposite of above. Could be benign.

Application Logs

Pretty self-explanatory.
Not all applications choose to log via the Event Viewer

This should be checked before assuming
Often applications create their own logs

Security Logs

Contains records of:

Valid and invalid logon attempts
Events related to resource usage:

Creating files or objects
Opening files or objects
Deleting files or objects

The Local Security Policy will allow you to obtain more information about what can be logged

Other Built-In Logs

System: Drivers and hardware, if they follow the Windows API, generate events that get logged in this category
Setup: Windows Update logs here and everything that happens during installation.
Depending on the machine, could also have domain controller or DNS logs, etc.

Windows Event Viewer – Logins

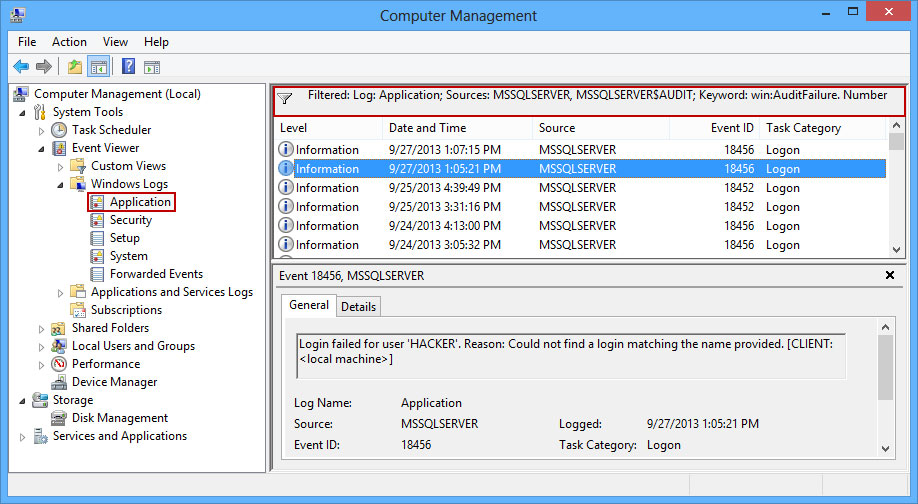

Windows Event Viewer – SQL logs

Windows Event Viewer – Office Logs

Windows Event Logs Lookup sites : Microsoft Technet, EventID.net
